Z8 Reinforced Nylon Plastic Solenoid Valves For Water , Industrial
/ Irrigation Solenoid Valve
Applicability :
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
4 . If fluid is not high cleanliness , should be installed a
filters in front of the solenoid
valve , general solenoid valve is better claim to medium cleanness
5 . Pay attention to the environmental temperature on the influence
of solenoid valve .
6 . Power supply current and power consumption should be selected
according to the output
capacity , power supply voltage generally allow + / - 10 % , must
pay attention to AC starting the
VA value is higher .
7 . Pay attention to the orifice and port size ; usually only open
and close two type ; Conditions
permit , please install bypass pipe , easy maintenance ; When there
is water drain to customize
solenoid valve opening and closing time regulation .
Reliability :
Solenoid valve is divided into normally closed and normally open .
General choose normally close , power on is open and power off is shut down ; But in the open for a
long time and very short close time to choose the normally open type .
Economy :
There are a lot of solenoid valve can be common use , but on the
basis of can satisfy the above three terms , should choose the most economical products
Details

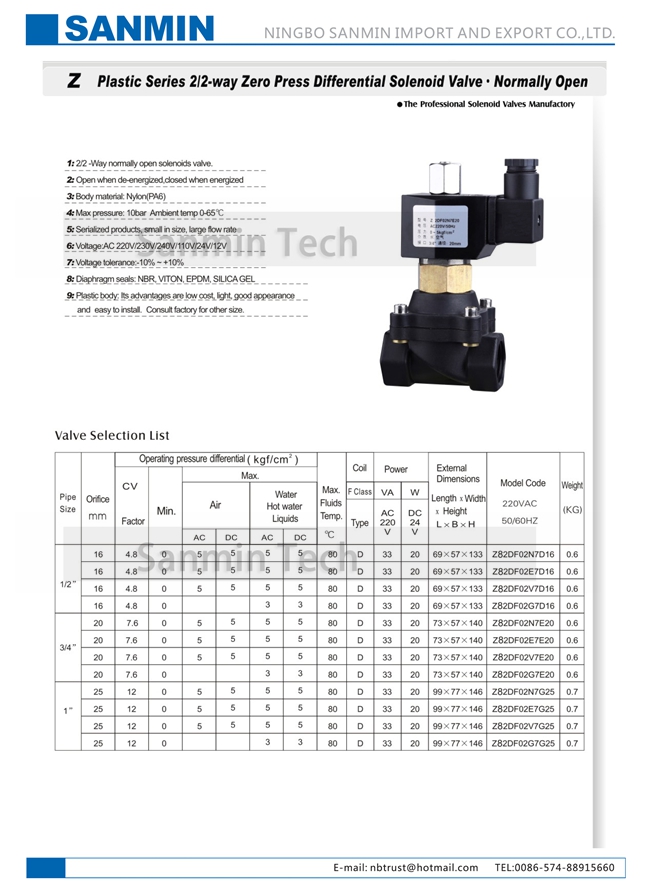

1 : 2 / 2 - Way normally open solenoids valve .
2 : Open when de - energized , closed when energized
3 : Body material : Nylon ( PA6 )
4 : Max pressure : 10 bar Ambient temp 0 - 65 ℃
5 : Serialized products , small in size , large flow rate
6 : Voltage : AC 220V / 230V / 240V / 110V / 24V / 12V
7 : Voltage tolerance : - 10 % ~ + 10 %
8 : Diaphragm seals : NBR , VITON , EPDM , SILICA GEL
9 : Plastic body : Its advantages are low cost , light , good
appearance and easy to install , Consult factory for other size .
Why choose us
1: Various style for each products and completely series pneumatic
products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special
customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air
source treatment , solenoid valve ,water valve,steam valve,
mechnical valve ,foot valve,angle seat valve,anti-explosion
valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic
ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all
type of coil,lubrication pump and parts,SS316 fitting,quick coupler
, etc .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and
brass,aluminum . Valve / solenoid valve / electric valve /
pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years
and professional to make . But you need give us the authorization
for work.
